Product Details

🚀 Efficient Power Output

Kubota brand engines, available in 192F/B&S/Z482 models, deliver up to 13.6hp (11.2ps), meeting diverse construction needs.

With a maximum speed of 3600rpm, the machine boasts strong power output, quick starts, and stable operation.

Multiple fuel options (diesel/gasoline) are available, supporting 0-10 octane fuels to adapt to diverse environments and climates.

🛠️ Powerful Hydraulic System

Equipped with a Gear Pumps 306 hydraulic pump, boasting a maximum flow rate of 4.76 GPM / 18 L/min, this system ensures efficient oil delivery during operation.

Combined with a WDM-300 travel motor and a BM2-315 swing motor, each boasting a displacement of 315 ml/r, this system delivers fast response and precise operation.

With a maximum set pressure of 2611 psi (18 MPa) and a rated pressure of 2466 psi (17 MPa), this system ensures strong operating force and system stability.

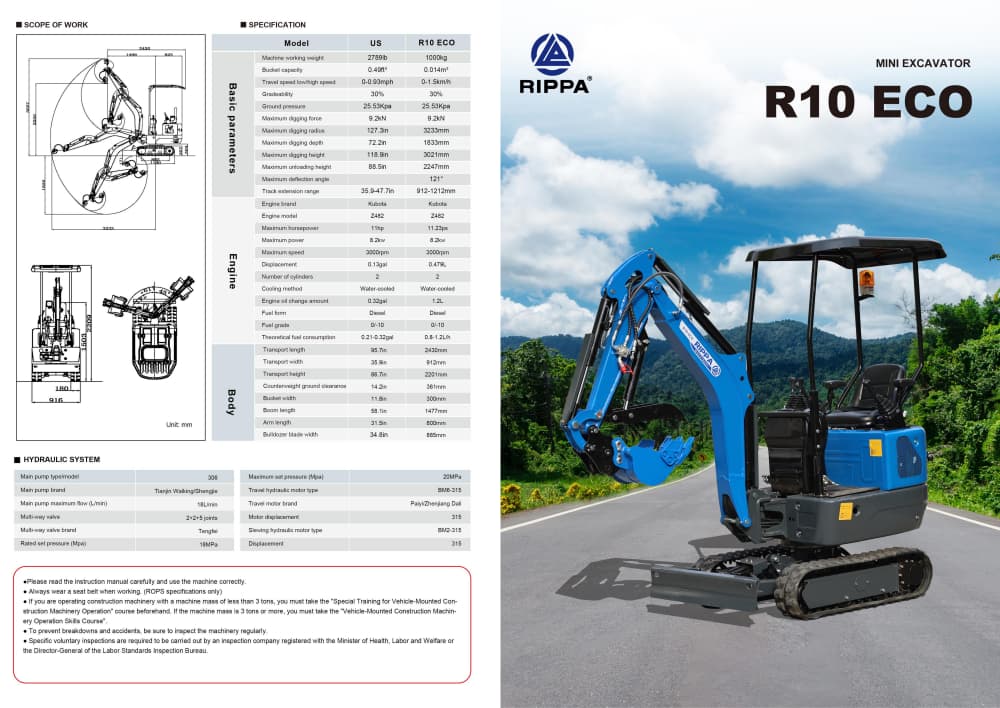

📐 Excellent digging performance

Maximum digging depth: 72.2 inches (1833 mm)

Maximum digging radius: 127.3 inches (3233 mm)

Maximum digging force: 2068 lbf (9.2 kN)

A wide 121° deflection angle allows for flexible digging in tight spaces.

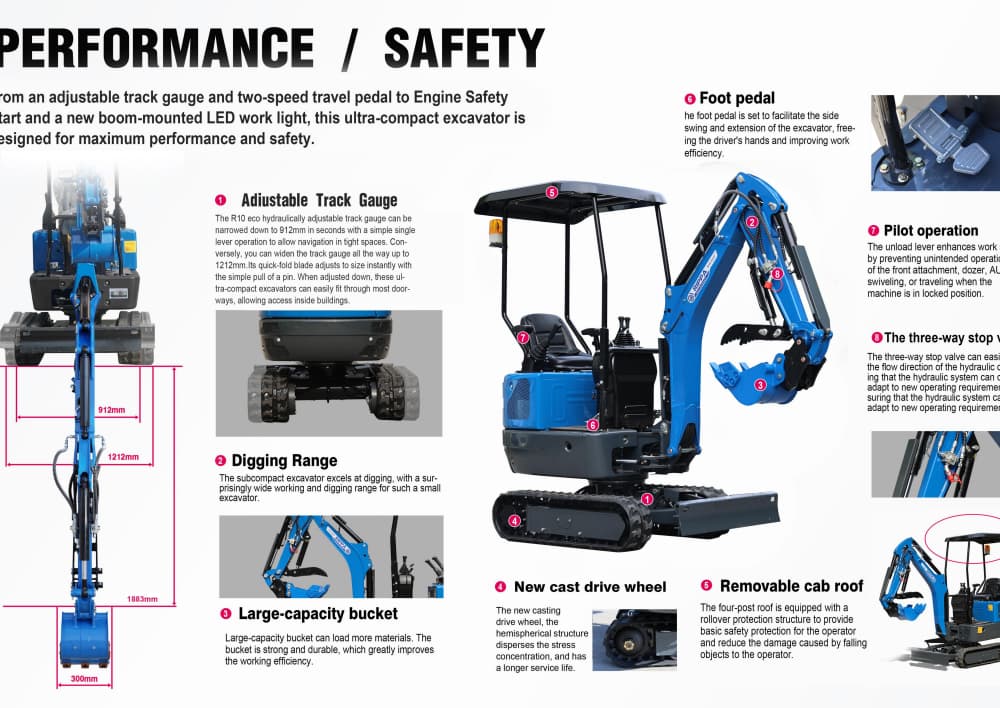

Compact and Flexible Design

The machine's operating weight is only 2200 lb (1000 kg), making it easy to transport and move around.

The retractable track design allows for adjustable track widths from 35.4 to 47.2 inches (900 to 1200 mm), enhancing maneuverability and stability.

The compact transport dimensions of just 2430 mm in length, 912 mm in width, and 2201 mm in height make it easily adaptable to smaller vehicles and low-lying work environments.

Product form
