The RIPPA RS04 Stand-on Compact Loader is engineered for high-efficiency power output, featuring the renowned Kubota Z482 engine. This engine provides a rated power of 8.2kW (11.0HP), ensuring the machine delivers strong performance while maintaining low fuel consumption and minimal noise and vibration. Its design focuses on reliability and easy maintenance, making it a dependable choice for demanding construction, landscaping, and farm work.
To complement its robust engine, the RS04 utilizes a high-performance hydraulic system powered by a triple gear pump. This setup provides a stable hydraulic flow with rates of 18+12+12 L/min, enabling smooth operation and excellent compound action. The integration of a simple and reliable mechanical valve further enhances durability, allowing the loader to withstand harsh working conditions with a low failure rate and cost-effective maintenance.
Operational efficiency is a hallmark of the RS04, which boasts a 930 kg (2050 lb) operating weight and a 42 L/min (11.2 gpm) main pump hydraulic flow. These specifications allow for a maximum loading capacity of 480 kg and a maximum unloading height of 1553 mm. With a best-in-class travel speed of 2.5 km/h (1.55 mph), operators can move heavy objects quickly and precisely, significantly saving time and labor on the job site.
Versatile Attachments and Modular Design
One of the most innovative features of the RIPPA RS04 is its Modular Mobility System, which allows for a 15-minute track-to-wheel conversion. This versatility ensures all-terrain dominance, as users can choose between an integrated track design for smooth driving on slopes and complex conditions or a wheeled version depending on the specific environment. The machine's high-torque, low-speed travel motor ensures stable passage by smoothly handling huge inertial loads during starts and brakes.
The RS04 is designed to be a multi-functional powerhouse, equipped with two groups of five attachment oil circuits that enable the simultaneous and precise operation of various tools. An auxiliary hydraulic flow of 18 L/min (4.8 gpm) provides the necessary power for attachments such as trenchers, stump grinders, and log grapples. The inclusion of a quick-change device allows operators to switch between these attachments rapidly and safely, maximizing uptime.
For specialized tasks, RIPPA offers performance-matched attachments like the Grapple Bucket and the Enclosed Sweeper. The Grapple Bucket features a 0.25 m³ grab capacity and an 1150 mm opening width, while the Enclosed Sweeper provides a 1200 mm sweeping width with a brush speed of 200 rpm. Additionally, the floating bucket function allows the unit to automatically adjust its angle based on ground fluctuations, ensuring the bucket remains close to the surface for efficient cleaning and leveling.
Ergonomic Controls and Durability Features

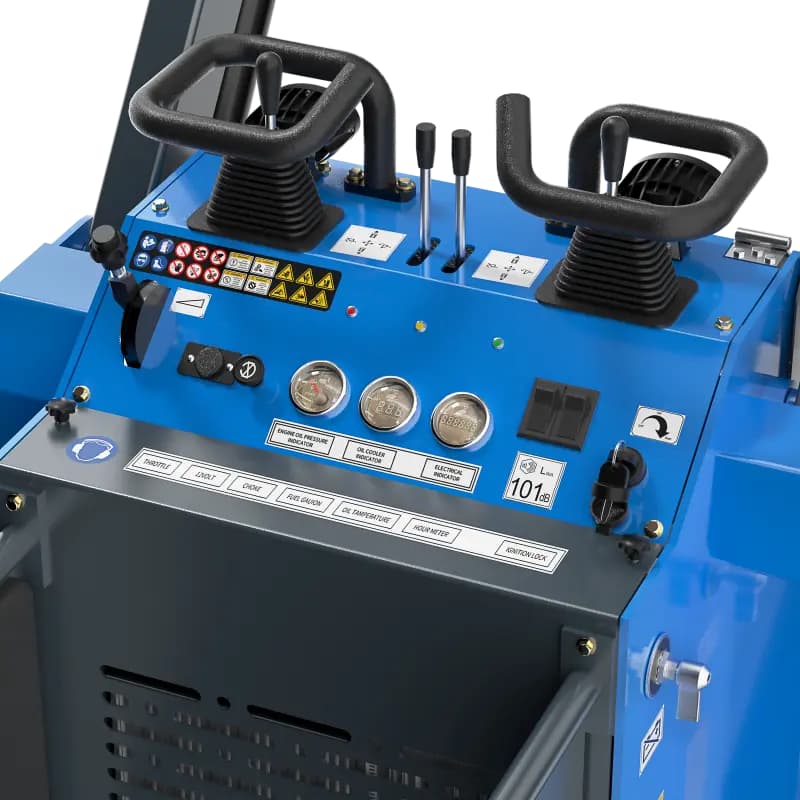

The operator experience is prioritized through a thoughtfully designed control panel that includes dual-hand levers and independent attachment control levers. This layout provides precise hydraulic control and flexible operation, while the integrated instrument panel allows for real-time monitoring of the equipment's status. For added comfort, the non-slip foot pedals are supported by gas springs and can be easily flipped up when not in use.

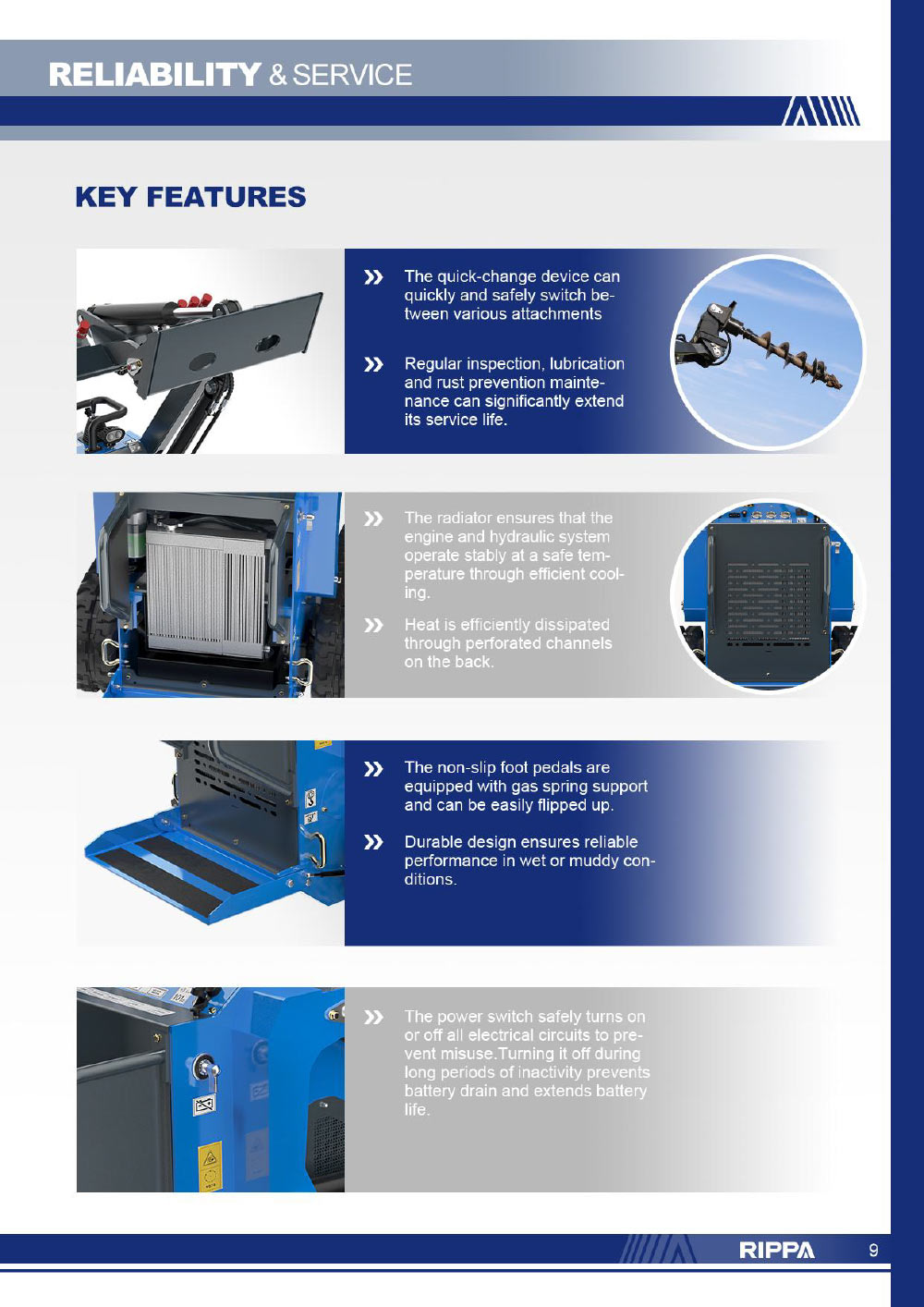

Safety and longevity are built into every aspect of the RS04's frame, including a power switch that safely manages all electrical circuits to prevent battery drain during long periods of inactivity. The machine's cooling system features a high-efficiency radiator and perforated channels on the back for effective heat dissipation, ensuring the engine and hydraulics operate at safe temperatures. Furthermore, the oil pipes are arranged in a built-in configuration to protect them from wear and tear, extending their overall service life.
Visibility and maneuverability are critical in tight spaces, and the RS04 addresses this with a compact 1150 mm body width and high-brightness LED work lights. These energy-efficient lights provide wide coverage and are shock-resistant, ensuring optimal visibility in any environment. To simplify logistics, the loader includes sturdy, strategically located lifting holes that have been force-calculated to ensure stability and safety when the entire machine is being lifted or loaded for transport.
