mini skid steer track loader

High-Performance Power and Structural Efficiency

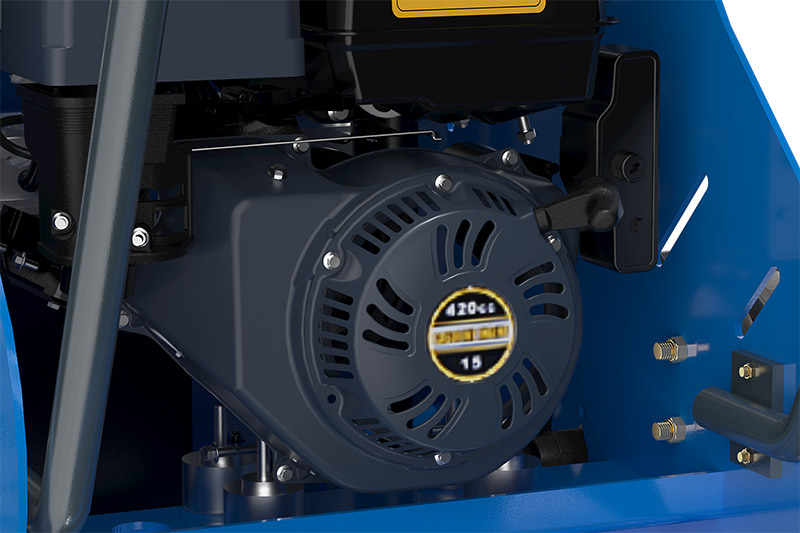

The core strength of this skid steer loader lies in its robust powertrain, centered around the Briggs & Stratton XR2100 engine. Delivering a rated power of 8.4 kW (11.3 HP), this engine is engineered to provide high torque and reliable performance even under demanding conditions. One of its standout advantages is the balance between raw power and fuel efficiency, ensuring that operational costs remain low without sacrificing productivity. Additionally, the engine is designed for long-term durability, making it a dependable choice for rigorous construction or landscaping tasks.

To further enhance reliability and simplify the machine's internal mechanics, the hydraulic pump is directly connected to the engine. This direct-drive configuration eliminates the need for complex belts or pulleys, which are common points of failure in lesser models. By reducing the number of moving parts between the power source and the hydraulic system, the machine requires significantly less maintenance and experiences minimal energy loss. This ensures that every bit of the engine's 11.3 HP is utilized effectively to power the loader's movements and attachments.

Operational efficiency is defined by the machine's impressive lift and carry specifications. With a maximum dump height of 1553 mm and a maximum load capacity of 204 kg, it excels at moving materials over obstacles and into high-sided trucks. The system integrates a main pump hydraulic flow of 50.4 L/min (13.3 gal/min), providing the fluid speed necessary for rapid cycle times. Weighing in at 639 kg (1408.7 lbs), the unit maintains a perfect center of gravity, combining stability with the agility needed to navigate tight workspaces while handling heavy loads with precision.

Intuitive Control Systems and Versatility

The operator interface is meticulously designed to prioritize both comfort and high-precision handling. The control panel features an ergonomic layout equipped with dual-hand operating levers and a dedicated independent attachment control lever. This setup allows the operator to manage driving maneuvers and attachment functions simultaneously without physical strain. To keep the operator fully informed of the machine’s vitals, the integrated dashboard provides real-time monitoring of the equipment status, including temperature and pressure levels, preventing unexpected downtime through proactive awareness.

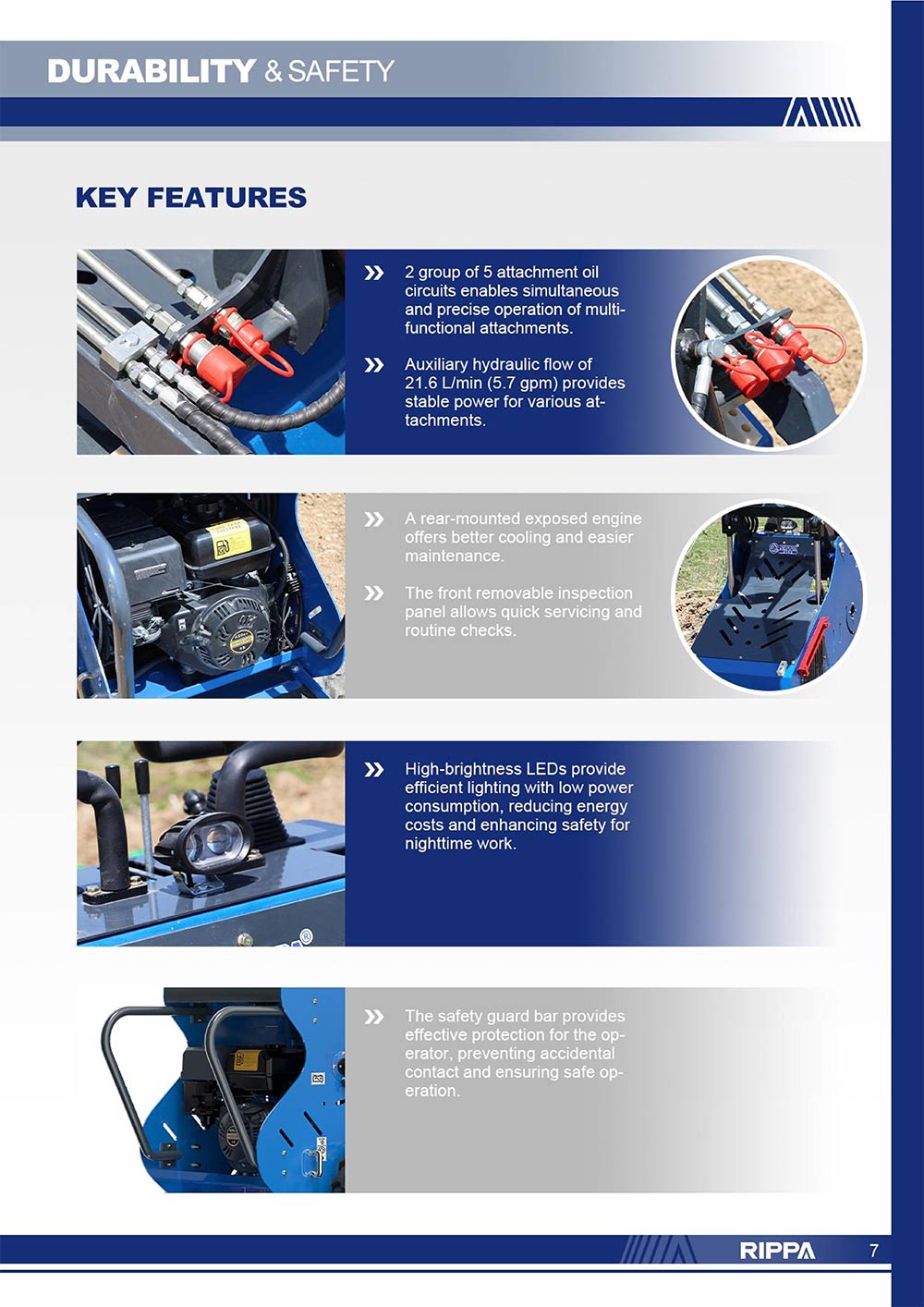

Versatility is a hallmark of this loader, driven by its sophisticated hydraulic distribution system. The attachment lever provides precise control over hydraulic flow, allowing various tools—such as augers, sweepers, or grapples—to operate with fluid, responsive movements. This high-flow hydraulic system provides the necessary power to drive demanding attachments, ensuring that the loader can be repurposed for different stages of a project in a matter of minutes. Whether you are trenching, lifting, or clearing debris, the controls adapt to your specific needs.

Maintenance Accessibility and Safety Engineering

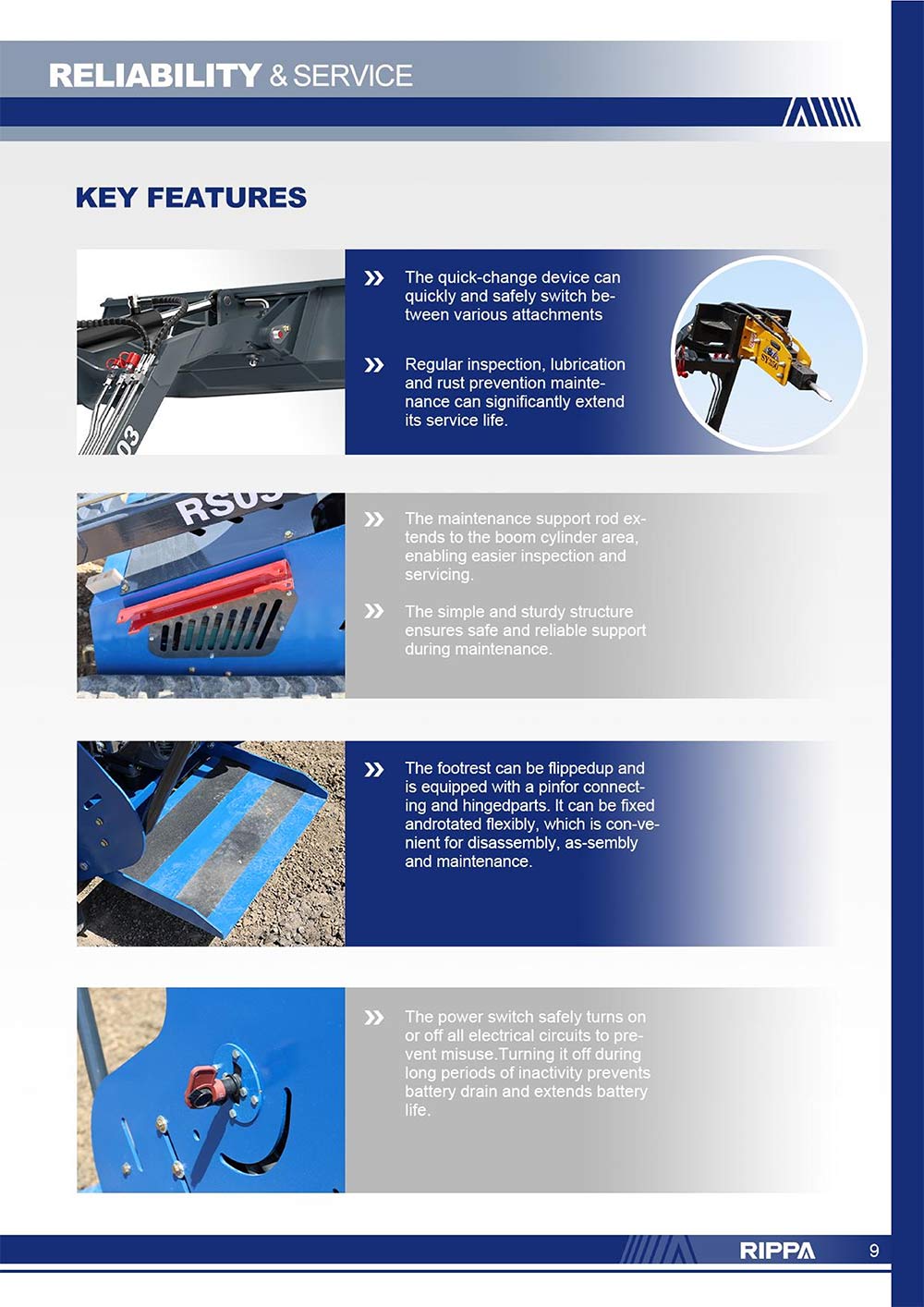

Longevity is built into the machine through a series of smart maintenance features designed to reduce service time. A key component is the quick-change device, which allows for the rapid and secure switching of attachments, minimizing the risk of improper installation. For deeper mechanical work, the machine includes a maintenance support rod that extends to the arm cylinder area. This simple yet rugged structure provides a safe and reliable brace, allowing technicians to inspect or repair the internal components without the risk of the lift arms descending unexpectedly.

The chassis and external components are designed for easy upkeep. The foldable foot pedal, equipped with connecting pins and hinged parts, can be flipped up to provide better access to the undercarriage for cleaning or disassembly. This flexibility is essential for removing debris that often accumulates during heavy-duty use. Regular lubrication and rust-prevention maintenance are further simplified by accessible grease points, which, when serviced consistently, can significantly extend the operational lifespan of the entire unit.

Safety and electrical integrity are managed through a centralized power master switch. This switch allows for the immediate activation or isolation of all electrical circuits, serving as a critical safeguard against unauthorized use or accidental starts. Furthermore, by cutting the power during long periods of inactivity, operators can prevent battery drainage and protect sensitive electronic components from phantom loads. This focus on "simple but sturdy" engineering ensures that the machine remains a reliable asset for years to come.
