R22PRO Mini Excavator – Compact Size, Powerful Performance

The R22PRO is designed for professionals who need a compact, reliable, and high-performance excavator for tough jobs in tight spaces. Built with premium components and engineered for durability, it delivers a perfect balance of efficiency, versatility, and operator comfort.

🔧 Key Advantages

1. Compact & Powerful
With an operating weight of only 5,228 lbs (2,371.5 kg), the R22PRO offers the flexibility to work in confined areas—ideal for landscaping, urban construction, and utility jobs. Despite its compact size, it delivers up to 24.75 horsepower (18.2 kW), powered by the trusted Kubota D1105 engine, known for long life and fuel efficiency.

2. Exceptional Digging Performance

• Max Digging Depth: 103.2 in (2,623 mm)

• Max Digging Radius: 163.1 in (4,143 mm)

• Max Digging Height: 148.1 in (3,761 mm)
  These specs allow the R22PRO to handle a wide range of excavation tasks, from trenching to lifting and loading.

3. Smooth & Efficient Hydraulics
Equipped with a load-sensitive variable piston pump and a 9-way hydraulic multi-valve system, the R22PRO ensures responsive and precise control.

• Max Hydraulic Flow: 67.2 L/min

• Max Pressure: 20 MPa
  These high-performance hydraulic components ensure smooth operation even under heavy loads.

4. Superior Maneuverability

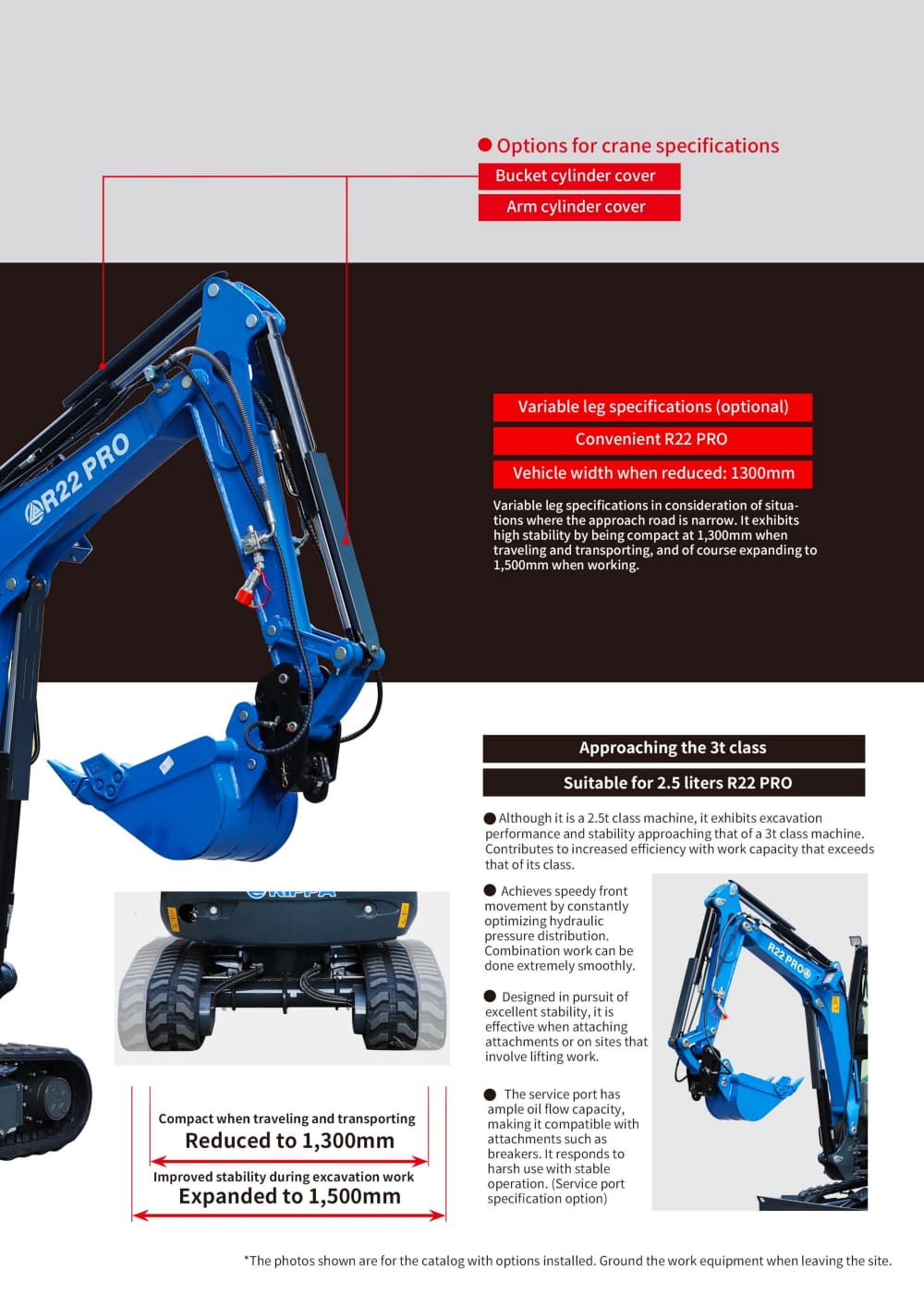

Thanks to its adjustable track extension (51.2–59.1 in) and compact body width (51.2 in), the R22PRO fits through narrow passages and adapts easily to uneven terrain with its 30% gradeability and counterweight ground clearance of 510 mm.

5. Built to Last

• Durable Taifeng main pump and multi-way valve

• Proven Likechuan travel and slewing motors

• Robust blade and arm structure: Boom length 1830 mm, Arm 1250 mm, Blade width 1300 mm

6. Fuel Efficient & Low Maintenance
With a theoretical fuel consumption of just 1.3–1.5 gal/h, and a water-cooled engine with 1.1–1.4 gal oil change capacity, the R22PRO minimizes downtime and operating costs.
