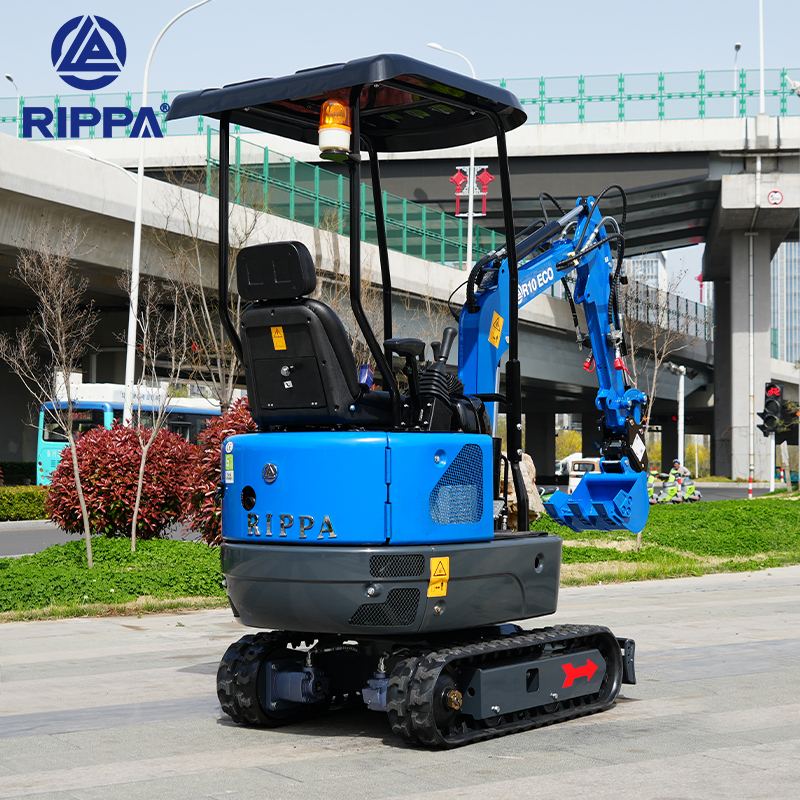

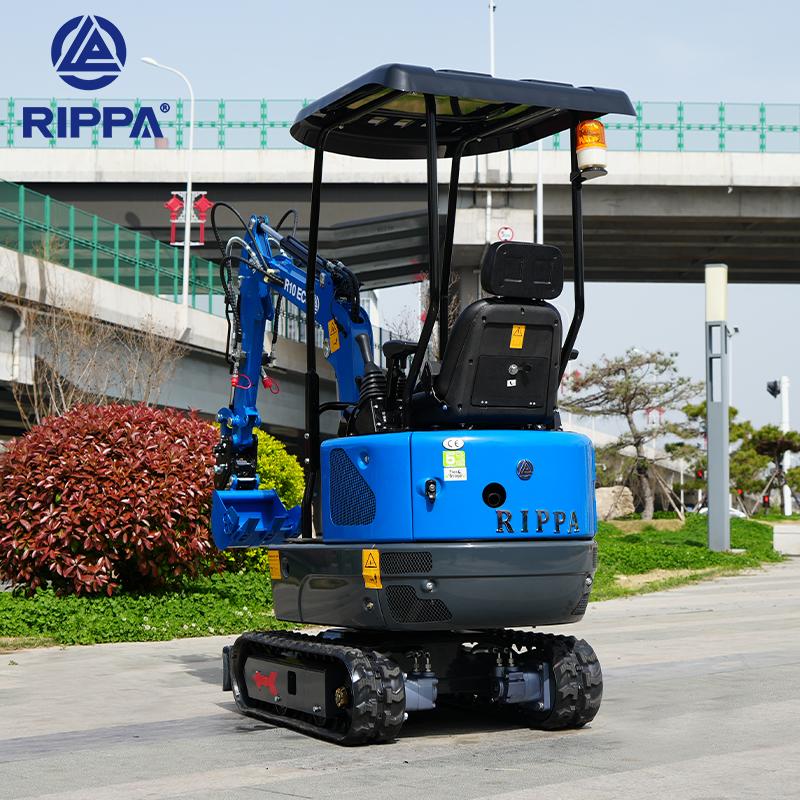

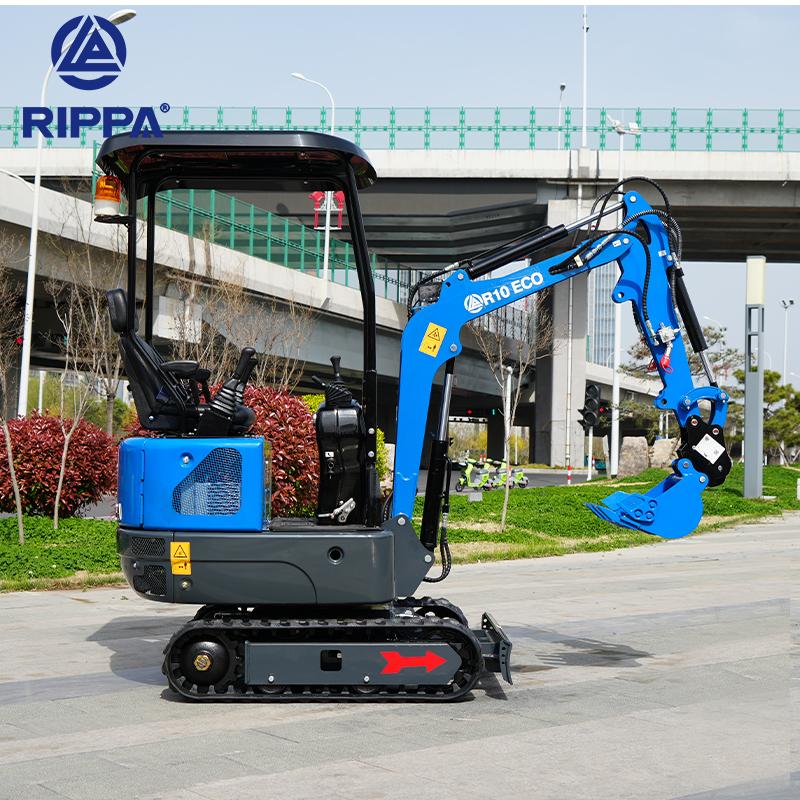

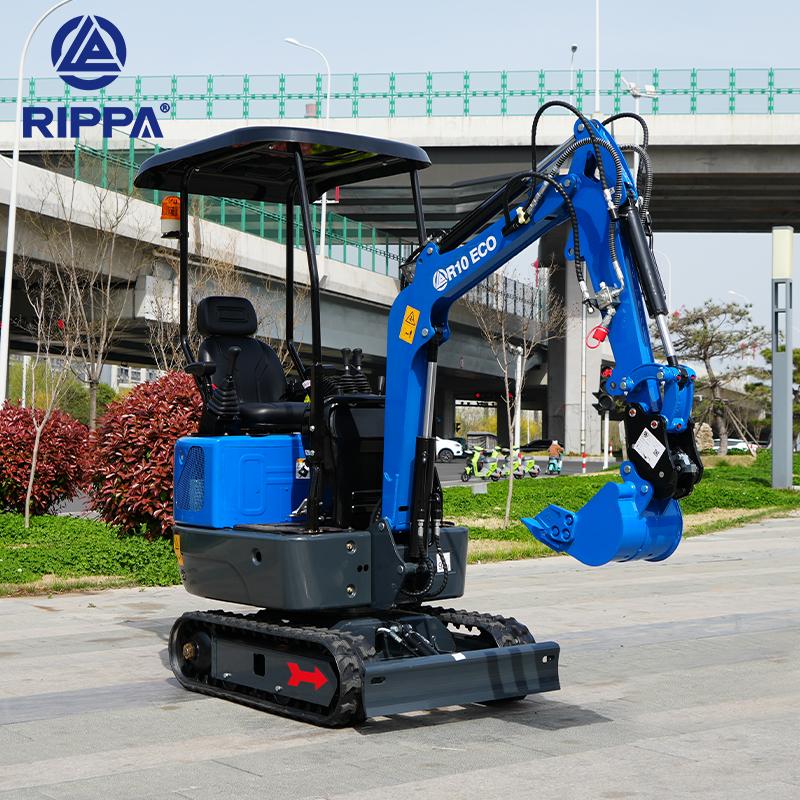

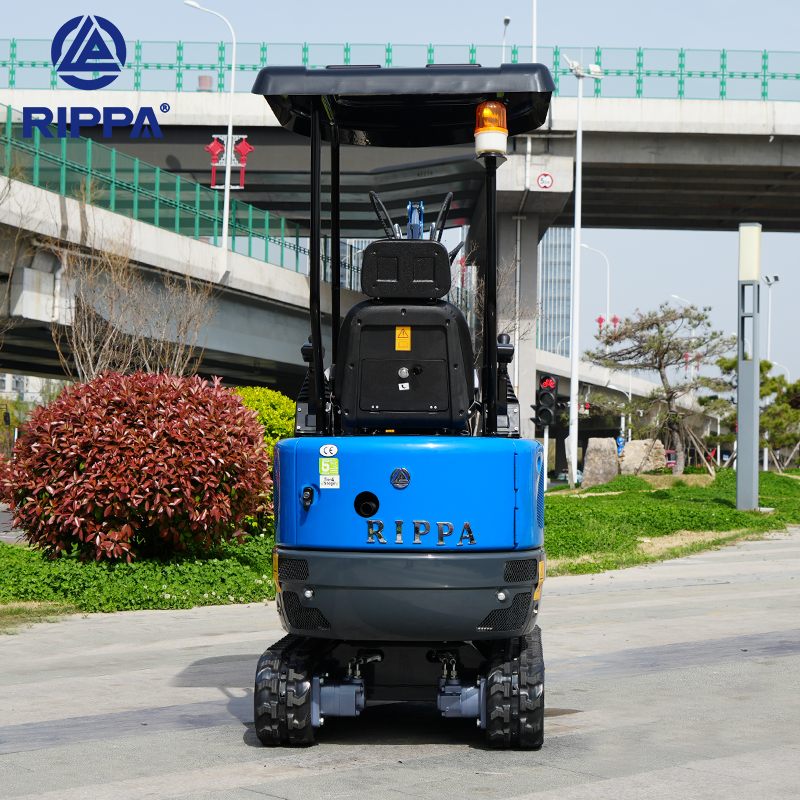

Mini Excavator Pilot Operation R10

Pilot operation refers to controlling the hydraulic signal through a small-stroke control handle (pilot handle), and then operating the main control valve to complete the action.

Front layout means that the control handle is set in front of the driver's seat, which is convenient for natural operation with both hands.

Advantages of lower cylinder

1. Improve the protection of the cylinder

The cylinder is located below the boom to avoid collision with stones, debris or obstacles during operation, effectively reduce the risk of damage and extend the service life.

2. Optimize the center of gravity of the whole machine and improve stability

The lower structure can make the center of gravity of the whole machine lower, which helps the whole vehicle maintain better stability when operating on uneven ground or slopes and reduce the risk of rollover.

3. Compact structure, adapt to small space

Compared with the upper cylinder design, the lower one saves more space, and the overall outline of the boom is more compact, which is conducive to working in narrow working conditions such as urban streets and indoor demolition.

4. More reasonable force transmission

The lower cylinder is more balanced when working, reducing fatigue damage to the boom structure and improving excavation efficiency and durability.

5. More convenient maintenance and repair

The lower cylinder position is more convenient for viewing, repair and replacement, saving maintenance time and reducing maintenance costs.
