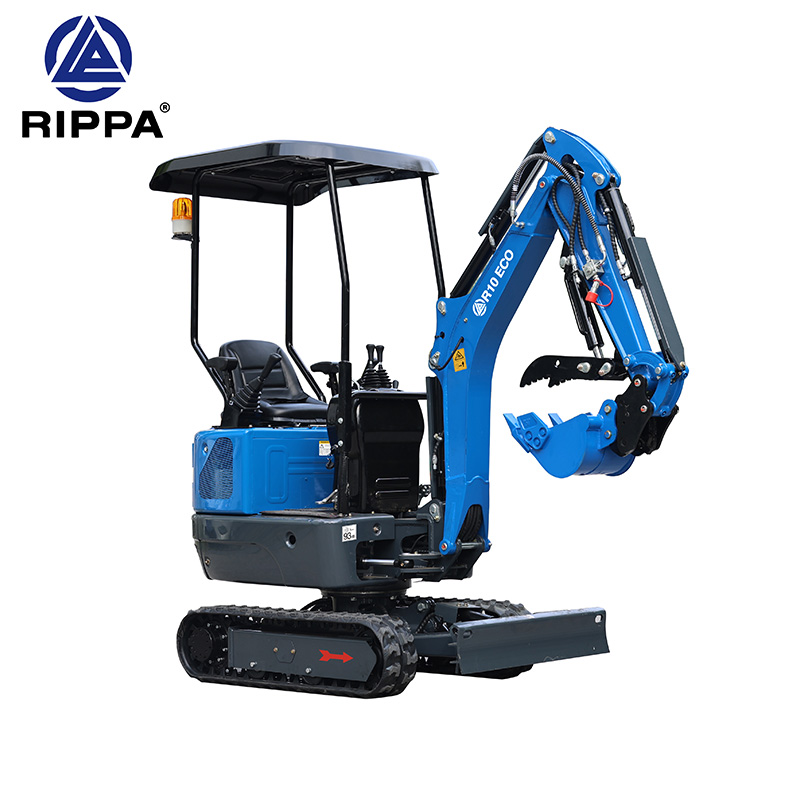

RIPPA R10 Mini Excavator
The RIPPA R10 Mini Excavator is a compact yet powerful machine designed for landscaping, agriculture, construction, and property maintenance applications. Equipped with a reliable Kubota Z482 diesel engine and advanced hydraulic system, the R10 delivers exceptional digging performance while maintaining excellent fuel efficiency.
Its retractable tracks, compact dimensions, and versatile attachment compatibility make it the ideal solution for working in narrow spaces where larger excavators cannot operate.
Product Details
Key Features
Kubota Z482 Diesel Engine
Rated Power: 8.2 kW
Low fuel consumption
Reduced noise and vibration
Proven reliability
Retractable Undercarriage
The adjustable track width enables easy access through gates, pathways, and confined work areas while maintaining machine stability.
High-Efficiency Hydraulic System
Gear Pump
Hydraulic Flow: 18 L/min
Mechanical Control Valve
Smooth and precise operation
Reinforced Dozer Blade
The strengthened bulldozer blade improves grading performance and overall machine stability.
Comfortable Operator Station
Ergonomic adjustable seat
User-friendly controls
Excellent visibility
Reduced operator fatigue
Available cab options include:
Heater
Fan
Windshield Wiper
Fresh Air System
Rear View Camera
Technical Specifications
Machine Performance
| Item | Specification |
|---|---|
| Operating Weight | 1115 kg |
| Bucket Capacity | 0.025 m³ |
| Travel Speed | 0–3.9 km/h |
| Ground Pressure | 25.63 kPa |
| Maximum Digging Radius | 3233 mm |
| Maximum Digging Depth | 1803 mm |
| Maximum Digging Height | 3247 mm |
| Maximum Dumping Height | 2201 mm |
| Maximum Vertical Digging Depth | 1273 mm |
| Minimum Swing Radius | 1517 mm |
| Track Extension Width | 990–1200 mm |
Dimensions
| Item | Specification |
|---|---|
| Transport Length | 2870 mm |
| Transport Width | 930 mm |
| Transport Height | 2210 mm |
| Counterweight Ground Clearance | 330 mm |
| Tail Swing Radius | 1470 mm |
| Track Width | 180 mm |
| Dozer Blade Width | 900–1200 mm |
Engine
| Item | Specification |
|---|---|
| Brand | Kubota |
| Model | Z482 |
| Rated Power | 8.2 kW |
| Maximum Power | 8.6 kW |
| Fuel Type | Diesel |
| Cooling Method | Water-Cooled |
| Number of Cylinders | 2 |
| Fuel Tank Capacity | 10 L |
Hydraulic System
| Item | Specification |
|---|---|
| Pump Type | Gear Pump |
| Hydraulic Flow | 18 L/min |
| Working Pressure | 16 MPa |
| Travel Motor | BMD-390 |
| Swing Motor | BMR-315 |
Available Attachments
The RIPPA R10 supports a wide range of attachments:
Standard Bucket
Mud Bucket
Riddle Bucket
Hydraulic Breaker
Rotary Auger
Ripper
Rake
Log Grapple
Tilting Bucket
Quick Hitch
Quick attachment changes maximize productivity and allow one machine to perform multiple tasks.
Typical Applications
Landscaping
Tree Planting
Land Leveling
Stump Removal
Agricultural Work
Fence Installation
Irrigation Trenches
Farm Maintenance
Construction Projects
Small Foundations
Utility Installation
Driveway Repairs
Residential Projects
Swimming Pool Excavation
Drainage Ditches
Backyard Renovations
Why Choose RIPPA?
✓ Factory Direct Supply
✓ Global Export Experience
✓ CE / EPA Certifications Available
✓ Worldwide Spare Parts Support
✓ Competitive Pricing
✓ Fast Delivery
Request a Quote Today
Looking for a reliable mini excavator for your next project?
Contact RIPPA today to receive pricing, attachment options, and shipping solutions tailored to your business.
