RIPPA RS04 Stand-On Compact Loader: The Ultimate Solution for Tight SpacesOverview

The RIPPA RS04 is a high-performance, stand-on compact skid steer loader designed to deliver maximum power within a minimal footprint. Whether you are tackling professional landscaping projects, urban construction, or demanding farm work, the RS04 provides the agility and efficiency needed to handle tough jobs in confined areas.

Key Features & Performance

1. Reliable Kubota Power

At the heart of the RS04 is the world-renowned Kubota Z482 engine.

Rated Power: 8.2 kW (11.0 HP).

Efficiency: Delivers high-efficiency power output with low fuel consumption and minimal noise and vibration.

Serviceability: Designed for easy maintenance and long-term reliability.

2. Advanced Hydraulic System

Equipped with a triple gear pump, the RS04 ensures smooth operation and excellent compound action.

Flow Rates: Stable hydraulic flow of $18+12+12$ L/min.

Precision Control: Features a mechanical valve system that is simple, durable, and highly responsive under varying loads.

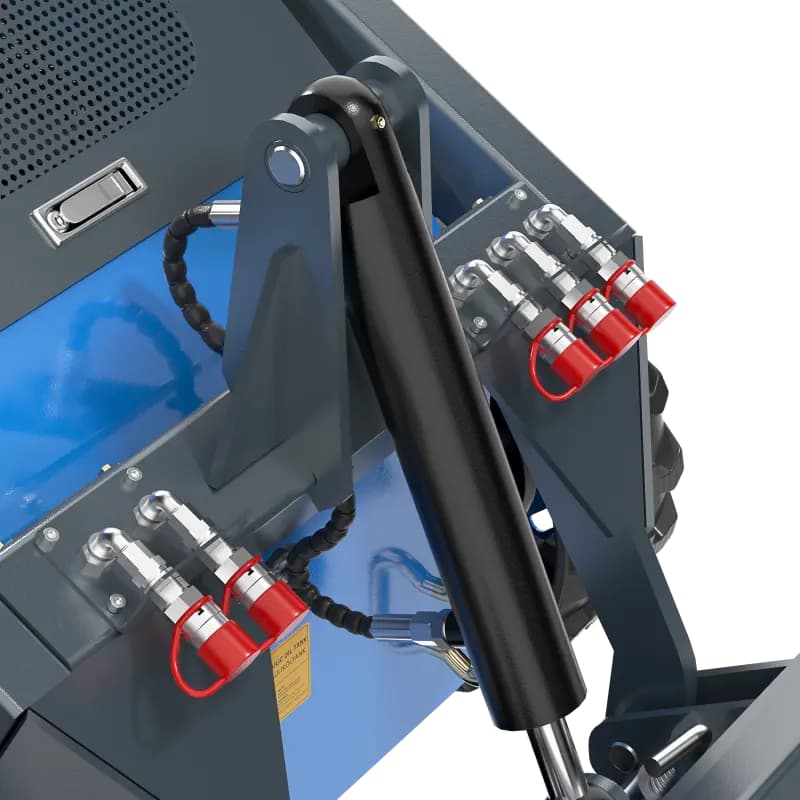

Auxiliary Power: Provides 18 L/min (4.8 gpm) of auxiliary flow to power a wide range of attachments.

3. Modular Mobility System

One of the RS04's standout features is its Modular Mobility System, allowing for a 15-minute track/wheel conversion. This flexibility ensures all-terrain dominance, whether you need the low ground pressure of tracks or the speed of wheels.

Technical Specifications

• Operating Weight: 930 kg (2,050 lb).

• Max Loading Capacity: 480 kg.

• Max Unloading Height: 1553 mm.

• Travel Speed: Best-in-class 2.5 km/h (1.55 mph).

• Compact Width: 1150 mm body for easy maneuvering through narrow gates and tight spaces.

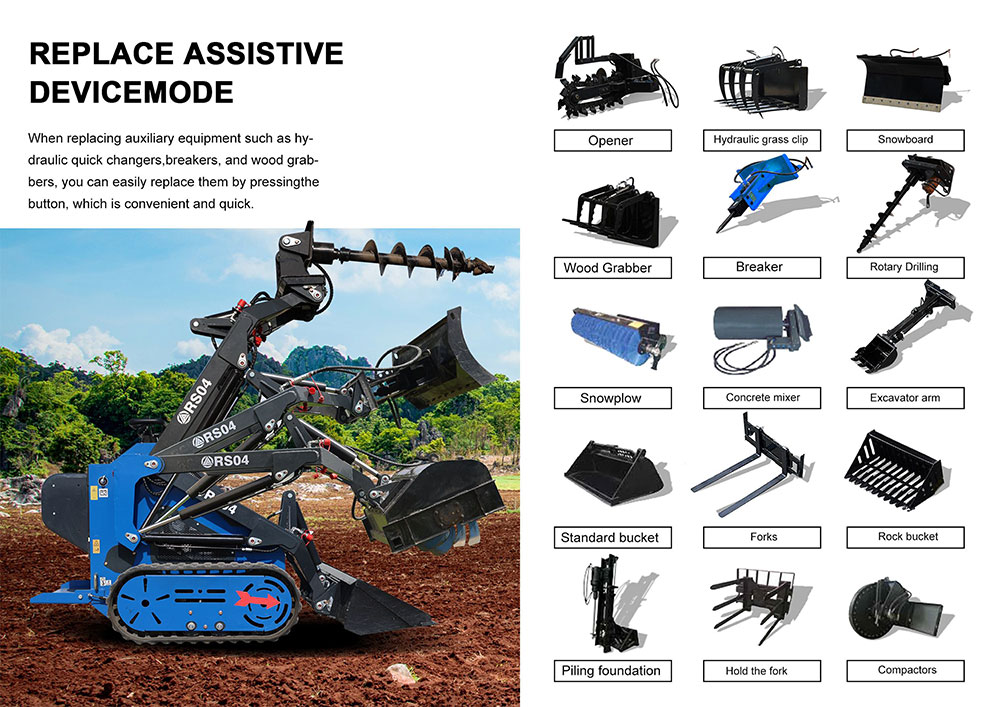

Versatility with Attachments

The RS04 is more than just a loader; it is a multi-functional power unit. Thanks to its quick-change device, you can rapidly switch between various tools:

• Direct Digging: 800 mm digging depth.

• Grapple Bucket: 1150 mm opening width for handling debris.

• Enclosed Sweeper: 1200 mm sweeping width for site cleanup.

• Additional Options: Compatible with trenchers, stump grinders, and log grapples.

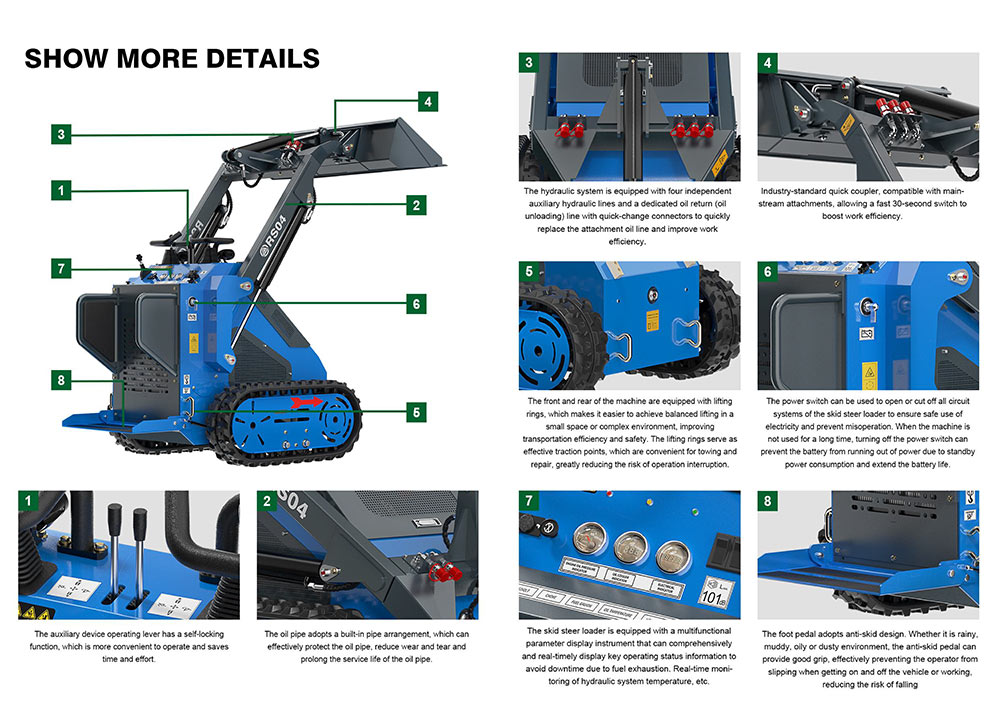

Operator Comfort & Safety

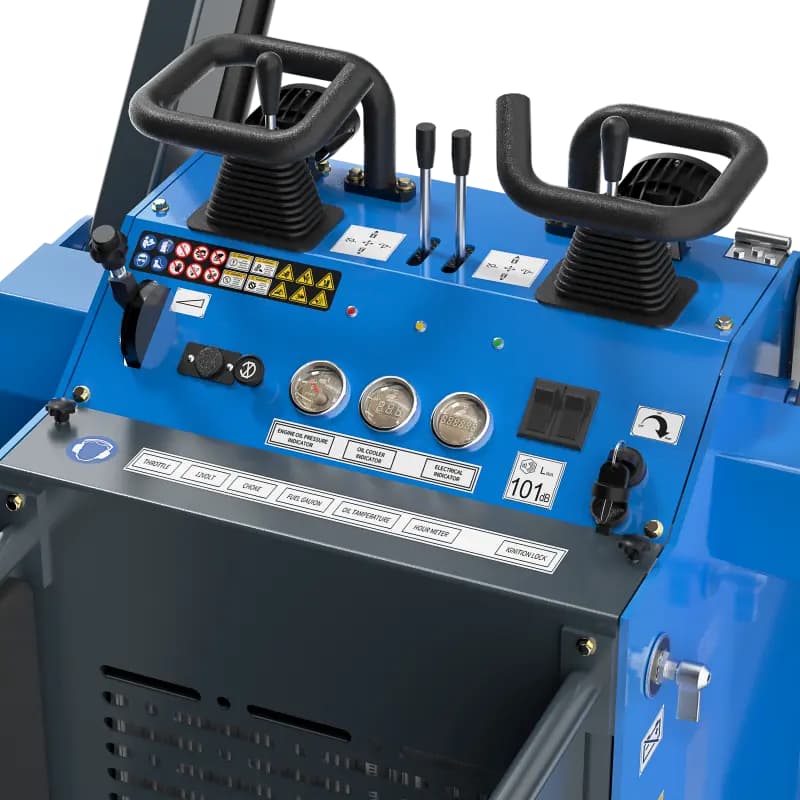

Ergonomic Controls: Dual-hand levers and an independent attachment control lever for precise operation.

Real-time Monitoring: The integrated instrument panel allows operators to track equipment status at a glance

Safety Features: Includes high-brightness LED work lights for low-light conditions and a master power switch to prevent battery drain.

Enhanced Stability: Non-slip flip-up foot pedals with gas spring support ensure a secure stance for the operator.
