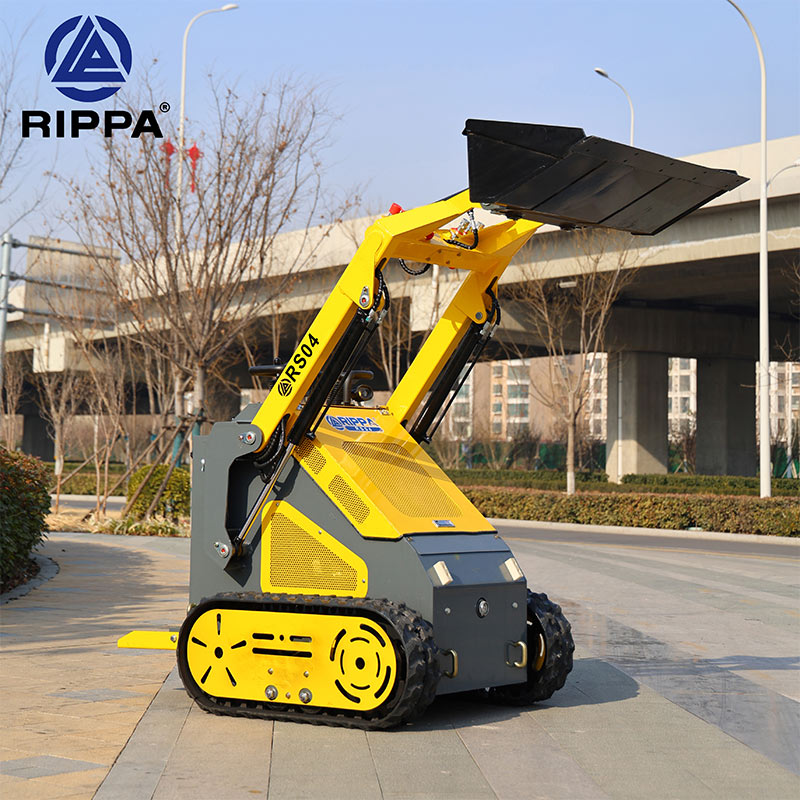

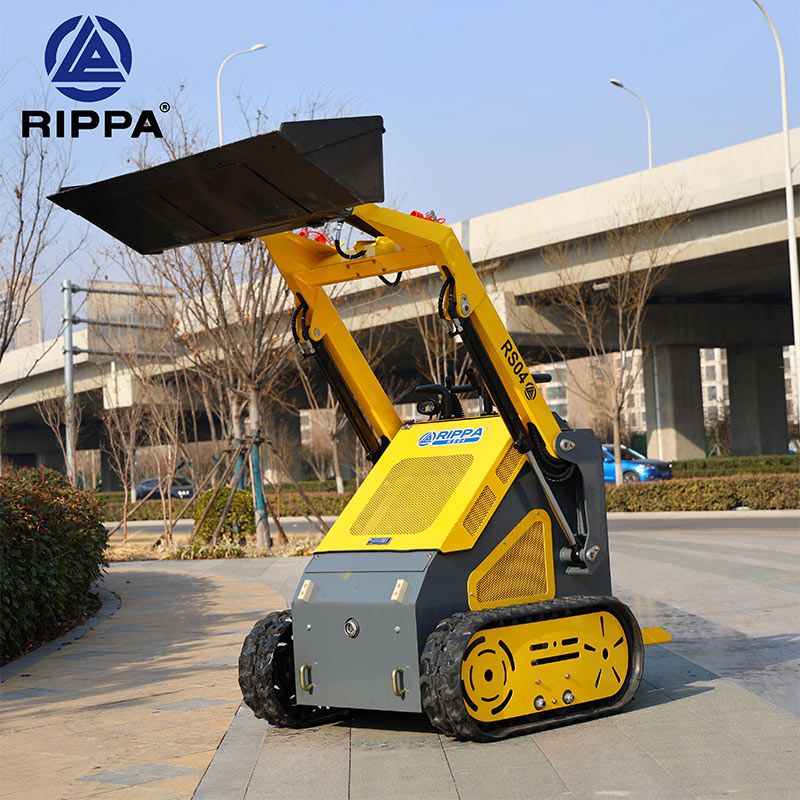

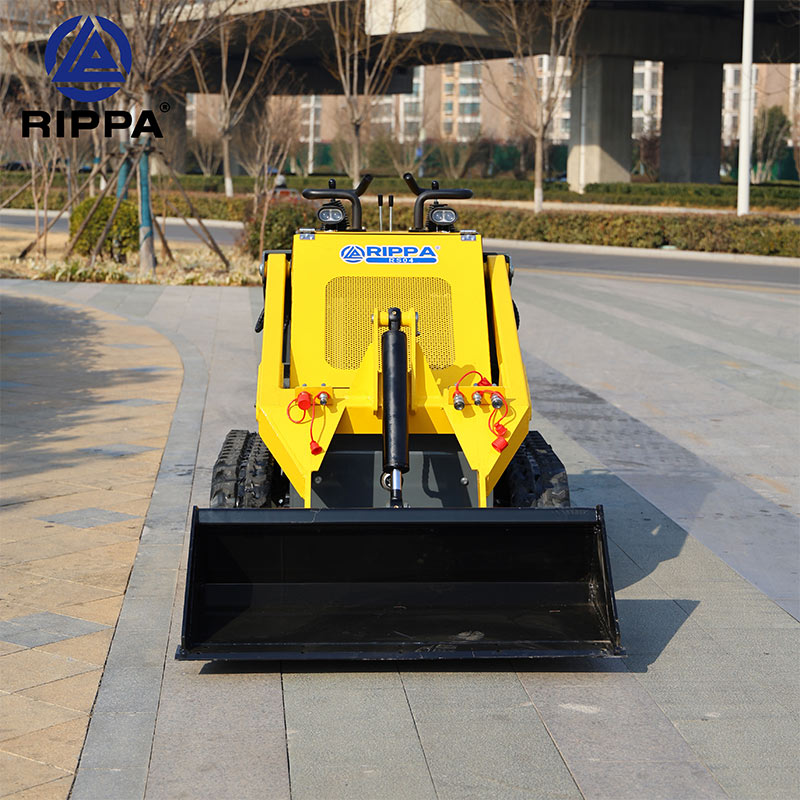

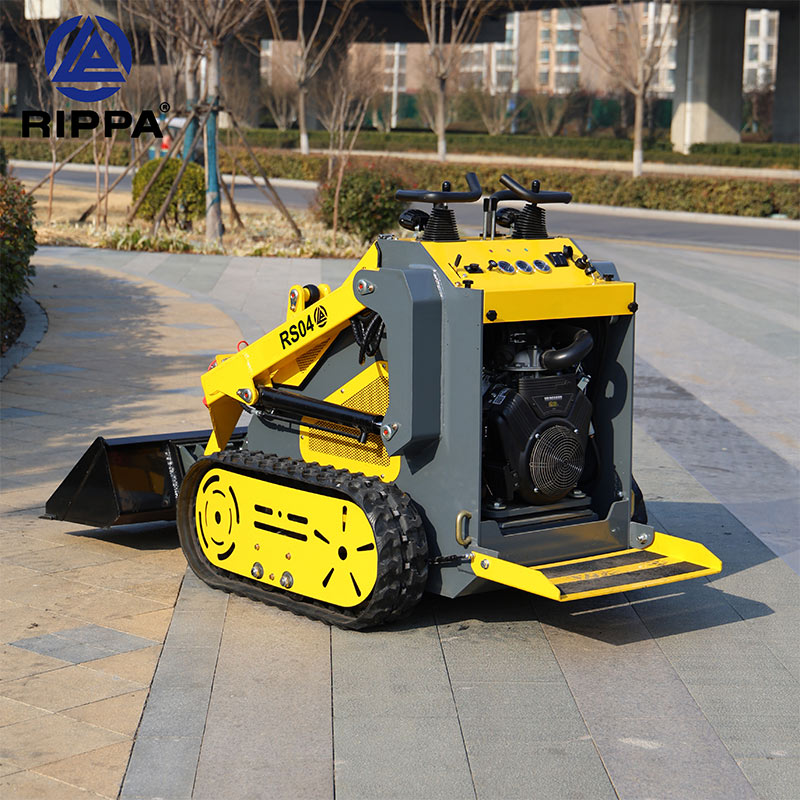

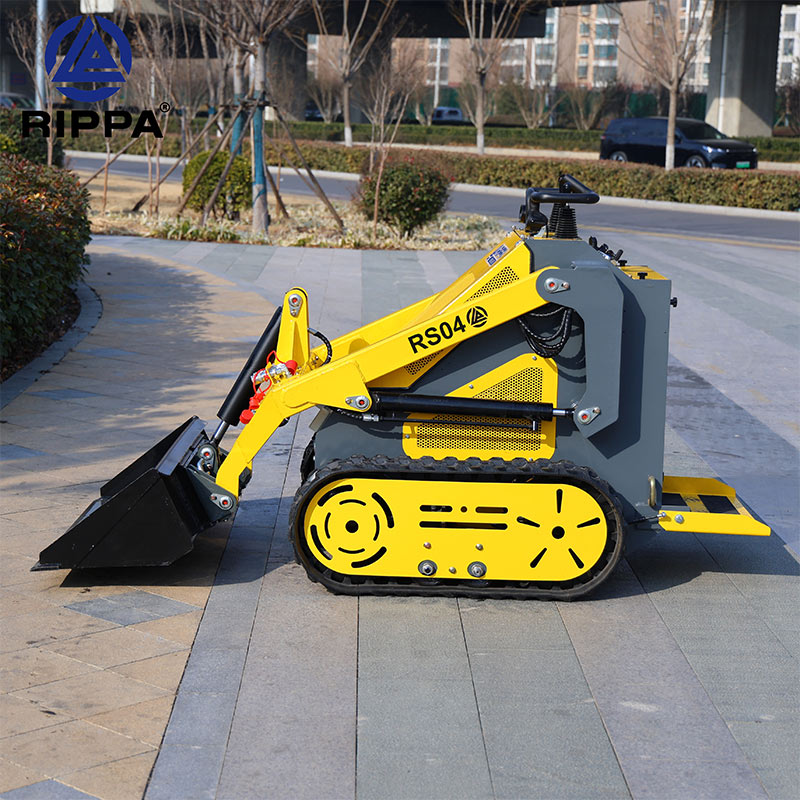

Compact Skid Steer Loader

Three selling points of the engine

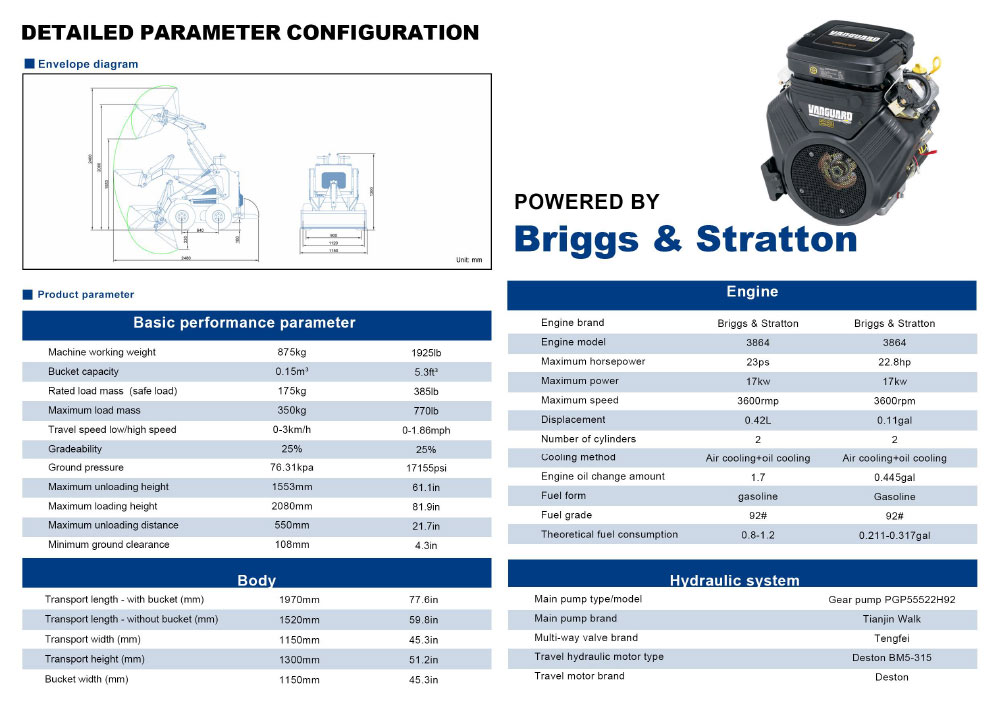

1. Strong power of two cylinders, output up to 23 horsepower

The Briggs & Stratton 3864 engine is equipped with a two-cylinder design, with a maximum power of up to 17kW (23ps / 22.8hp), a stronger power output, and can easily cope with high-intensity operations. It is suitable for medium and large-scale engineering machinery and equipment.

2. Dual cooling system to improve durability

The "air cooling + oil cooling" dual cooling method is adopted to effectively reduce the engine temperature, and it can maintain stable operation even under long-term high-load working conditions, extending the service life of the engine.

3. Fuel-saving and efficient, good fuel economy

The theoretical fuel consumption is only 0.8-1.2L/h (or 0.211-0.317gal/h), while ensuring strong output, it achieves excellent fuel economy, helping users to significantly reduce operating costs.

1. Powerful power system

Equipped with a 3864 diesel engine, the maximum power reaches 17kW and the speed is as high as 3600rpm. It has strong power and can adapt to various high-intensity operation requirements to ensure efficient and stable operation of the equipment.

2、Intelligent speed adjustment function

The speed mode adjustment function is standard. When working, you only need to push the pull rod, and the engine will automatically adjust the speed and gear according to the working mode to achieve humanized control and improve work efficiency and comfort.

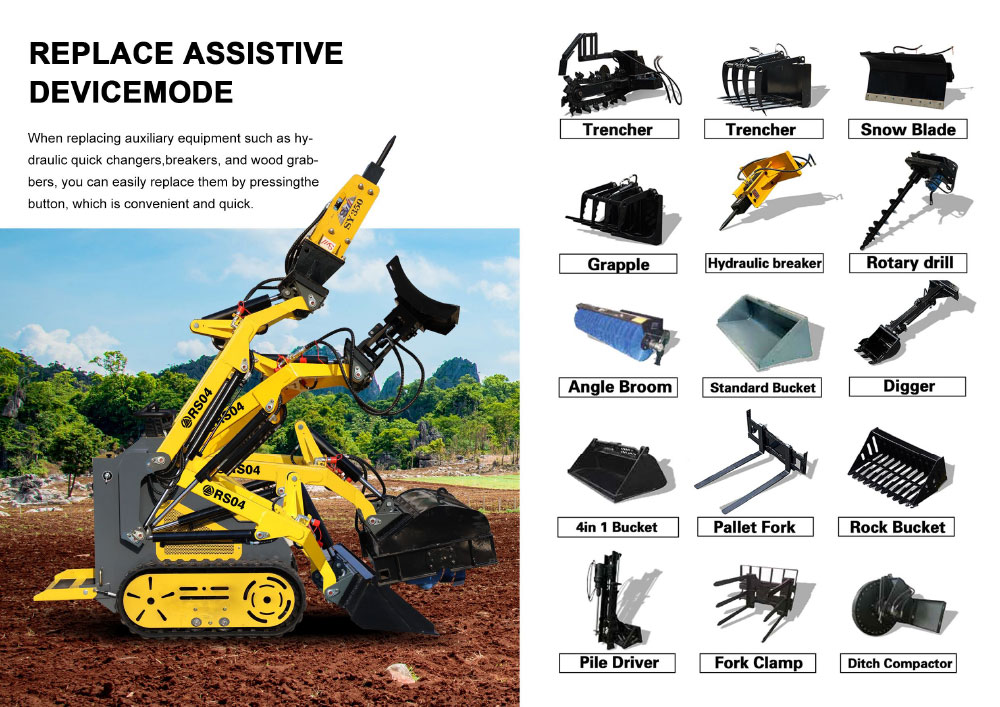

3、Convenient auxiliary device replacement mode

The standard quick replacement mode allows users to replace auxiliary equipment such as hydraulic quick-change devices, breaker hammers or wood grabbers by simply pressing buttons, which saves time and effort, is easy to operate, and significantly improves operational flexibility and versatility.
