Engine Power and Efficiency

The excavator is equipped with the Kubota D1105-E4B-CWL-1 engine, delivering 18.2 kW of power and 24.8 horsepower. This engine meets both EPA and Euro 5 certifications, ensuring compliance with strict environmental standards. Operators can rely on this powertrain to provide efficient performance while maintaining reduced emissions, making it suitable for international markets with tough regulations.

In addition to its eco-friendly design, the engine offers consistent power output across different working conditions. Whether handling heavy digging tasks or precision work, the Kubota engine ensures fuel efficiency without compromising productivity. This balance between power and environmental responsibility makes the excavator a dependable choice for contractors seeking both performance and compliance.

Hydraulic System and Pump Technology

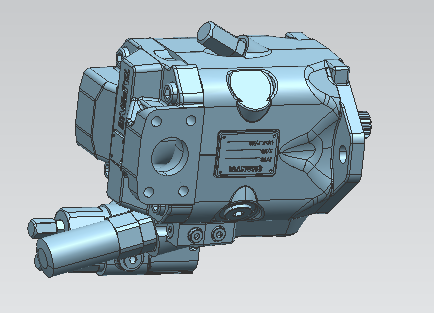

The excavator adopts a load-sensitive piston pump with a rated pressure of 25 MPa and a rated flow of 84 L/min. This advanced hydraulic technology automatically adjusts pump displacement in real time, minimizing energy loss during operations. By optimizing hydraulic output to match workload requirements, the system reduces fuel consumption while maximizing efficiency.

Undercarriage Stability and Durability

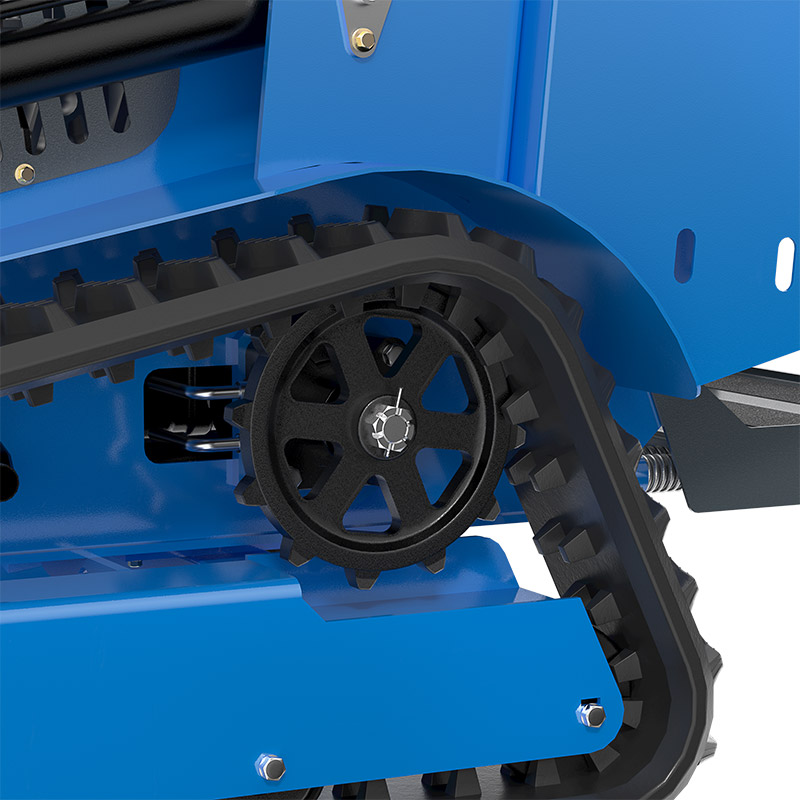

The excavator uses a triangular track design, providing enhanced stability and greater reliability during travel and digging operations. This structure distributes weight more effectively, reducing the risk of tipping and improving traction across various terrains. The rear wheel hydraulic tensioning cylinder ensures that the track always maintains the correct tightness, preventing slippage or derailment during demanding work.

This hydraulic system provides smooth and precise control, allowing operators to handle complex tasks such as grading, trenching, or lifting with greater accuracy. The responsive nature of the pump ensures that power is available when needed, while unnecessary energy use is eliminated. As a result, the excavator not only improves productivity but also lowers overall operating costs.

For additional strength, the tracks are widened and thickened, featuring dual guide wheels and five carrier rollers. This design evenly distributes the weight of the machine, ensuring balanced ground contact. The result is smoother operation, improved stability, and reduced wear on the undercarriage components, even under heavy loads.

The excavator is equipped with a motor displacement of 400, offering robust power for travel and heavy-duty applications. For operators who need more flexibility, an optional counterweight can be added, allowing the machine’s weight to be adjusted based on the working environment. This adaptability ensures higher performance and longer service life, making the excavator suitable for both construction and agricultural projects.
