High-Performance Engine and Advanced Hydraulic System
The RIPPA RS10 skid steer loader is powered by a robust Kubota V2607 engine, delivering a rated power of 35.5KW or 47.6HP. This engine is specifically chosen for its ability to provide high-efficiency power output while maintaining low fuel consumption and minimal noise and vibration. Designed for stable operation, the engine ensures the loader can handle demanding tasks in diverse environments, from confined construction sites to complex industrial settings.
To complement its powerful engine, the RS10 features a sophisticated four-pump hydraulic system. This system includes two dual closed-circuit pumps, an internal charge pump, and a gear pump, achieving impressive flow rates that keep the machinery stable under load. The integration of a load-sensing multi-section valve allows the machine to automatically adjust flow and pressure, ensuring responsive handling and smooth multitasking during operation.
The hydraulic architecture also includes three auxiliary hydraulic circuits with a flow rate of 46.2L/min. These circuits are designed to meet the high-power requirements of various attachments, such as buckets, grabs, and breakers. By facilitating the simultaneous drive of multiple attachments, the RS10 maximizes productivity and operational flexibility on the job site
Superior Stability and Versatile Field Applications
Stability is a core feature of the RIPPA RS10, which utilizes a strategic four-wheel layout to ensure excellent driving and operating balance across various terrains. The inclusion of OMCR3 series plunger motors provides high torque for travel, allowing the loader to navigate challenging ground conditions with ease. Furthermore, a large-capacity radiator with high heat dissipation efficiency ensures the equipment remains operational even under high-temperature conditions.
The RS10 is engineered for precision with features like the floating bucket function, which enables the bucket to automatically adjust its angle as the ground level changes. This is particularly beneficial for leveling and cleaning tasks on uneven roads. Additionally, the bucket leveling function maintains a constant angle during raising or lowering, which prevents material spillage and improves overall handling accuracy.

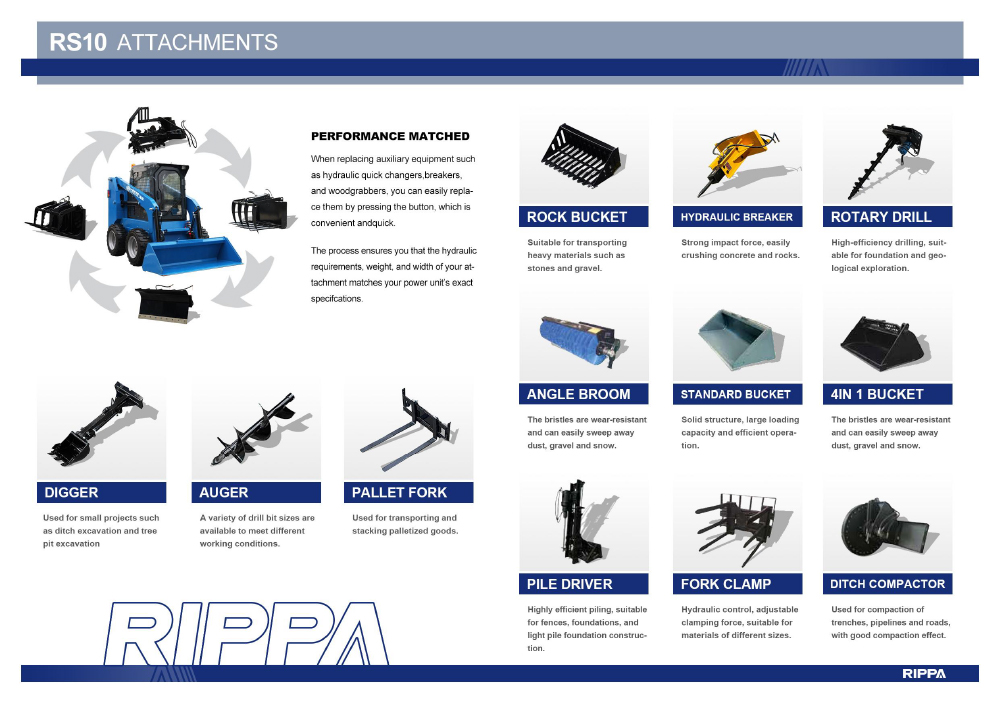

Versatility is further enhanced by a wide array of performance-matched attachments. Operators can quickly switch between tools such as rock buckets, hydraulic breakers, rotary drills, and pallet forks using a convenient button-operated hydraulic quick changer. This adaptability makes the RS10 suitable for everything from heavy material transport and concrete crushing to precision stacking and ditch excavation.
Advanced Operator Comfort and Safety Controls

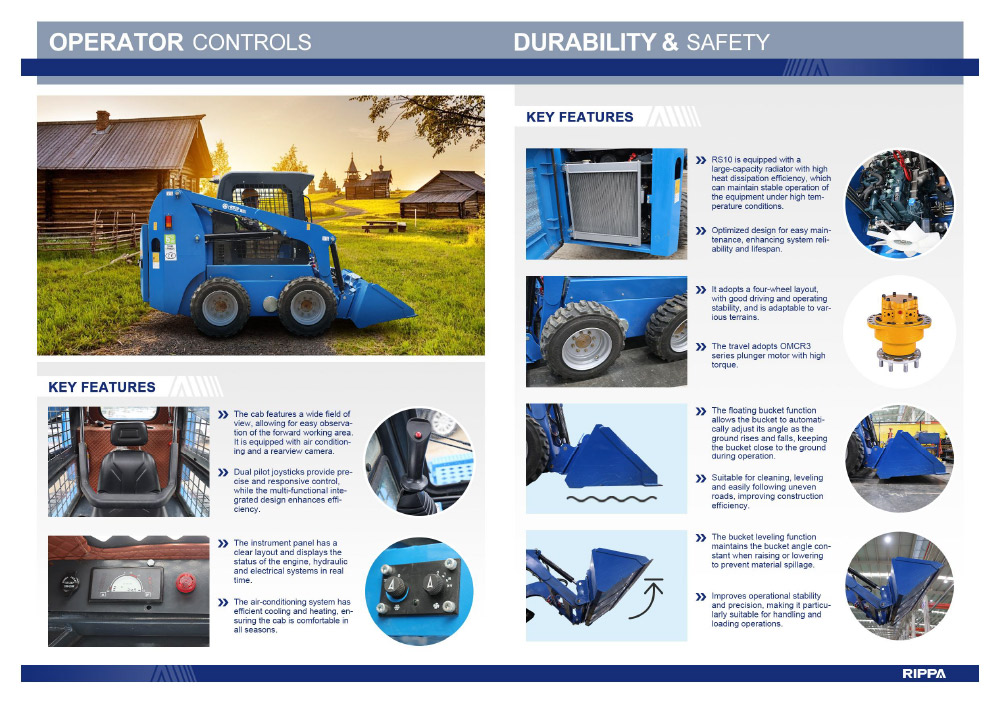

The operator experience in the RIPPA RS10 is defined by a cab designed for maximum visibility and comfort. A wide field of view allows for easy observation of the forward working area, while an integrated rearview camera provides additional safety during maneuvers. The cab is also equipped with a high-efficiency air-conditioning system that offers both cooling and heating to maintain a comfortable environment in all seasons.
Control is facilitated through dual pilot joysticks that offer precise and responsive handling of the machine's movements. The instrument panel features a clear layout, providing real-time data on the engine, hydraulic systems, and electrical components. This multifunctional integrated design not only enhances operational efficiency but also allows the operator to monitor the machine's status at a glance.
Safety and maintenance are also prioritized in the RS10's design. The equipment features an optimized layout that allows for easy maintenance access, which helps in enhancing the system's overall reliability and lifespan. With a working weight of 3006kg and a safe rated load mass of 500kg, the RS10 provides a stable and secure platform for a wide range of industrial and construction applications.
